Parts For SPITFIRE EX 1420

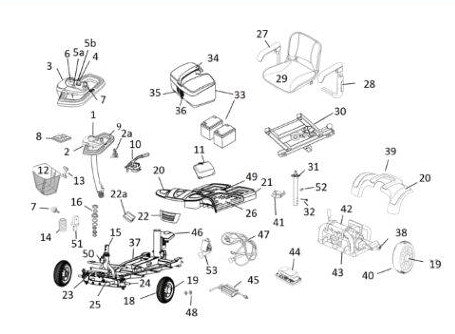

Please refer to parts diagram in order to select the correct replacement part for your Spitfire EX 1420. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
1 | Control Panel Assy. Gen 1 Blue | LRM412103B |
1 | Control Panel Assy. Gen 1 Red | LRM412103R |
1 | Control Panel Assy. Gen 2 (no decoration) | LRM412103-02 |
1 | Control Panel Assy. Gen 2 (no decoration with headlight switch) (Gen 2 has gray overlay) | LRM414100 |
2 | Lower Control Panel | LRM412101-15 |
2 | Lower Control Panel (with cut out for charger port) | LRM414102 |
2a | Charger Port | LRM414103 |
3 | Control Panel Decoration Blue | LRM412103-03B |
3 | Control Panel Decoration Red | LRM412103-03R |
4 | Speed Control | LRM412103-10 |
4 | Speed Dial Knob | LRM412103-11 |
5b | Heading Switches | LRM414103-16 |
6 | Battery Gauge | LRM412103-05 |
6 | Battery Gauge Mounting Strip | LRM412103-06 |
7 | Key Switch | LRB402323-02 |
7 | Key | LRB402323-01 |
7 | Key Switch (Spitfire with headlight) | LRM402323-02-HL |
7 | Key (Spitfire with headlight) | LRM112110-02 |
8 | PC Board | LRM302104 |
9 | Handgrip Cover | LRM412101-11 |
10 | Throttle Assembly Generation 2 | LRM302102-02 |
10 | Throttle Lever | LRM302102-09 |
11 | Front Compartment Door | LRM412123-05 |
12 | Basket | LRA402226 |
13 | Basket Mount | LRM412101-08 |
14 | Tiller Boot | LRM402200-06 |
15 | Steering Post | LRM412131-01 |
16 | Tiller Bearing Set | LRB402348 |
17 | Tiller Adjustment Knob | LRA402201-23 |
18 | Front Wheel - Black | LRM412112-02 |
19 | Hub Cap | LRM412202-HC |
20 | Blue Decoration Set (includes LRM412103-03B) | LRM412117B |
20 | Red Decoration Set (includes LRM412103-03R) | LRM412117R |
20 | Silver Decoration Set (includes control panel decoration) | LRM412117S |
21 | Front Shroud | LRM412118 |
22 | Front Shroud Trim (non headlight model) | LRM412134 |
22 | Front Shroud Trim (headlight model) | LRM414108 |
22a | Head Light | LRM414107 |
23 | Tie Rod (each) | LRM412130 |
23 | Tie Rod Spacer | LRM412130-01 |
24 | Steering Knuckle (pair) (non headlight model) | LRM412131 |
24 | Steering Knuckle Right (headlight model) | LRM414104 |
24 | Steering Knuckle Left (with headlight model) | LRM414105 |
25 | Articulating Beam (without headlight model) | LRM412132 |
26 | Left Floor Mat | LRM412118L |
26 | Right Floor Mat | LRM412118R |
27 | Armrest Pad | LRM302115-01 |
28 | Armrest Assemble Left, 2 tone seat | LRM302115-02 |
28 | Armrest Assembly Right | LRM302115R |
28 | Armrest Assembly Right, 2 tone seat | LRM302115R-02 |
28 | Armrest Knob | S31052 |
29 | 2 Tone Seat Assembly | LRM302116-02 |
29 | Back Cover | LRM302213-08 |
29 | Seat Cover | LRM302213-09 |
30 | Seat Plate 17.96mm * | LDR420011-02 |
30 | Seat Plate 19.45mm ** | LDR420011-FN |
30 | Seat Accesory Screw | LRM302117-01 |
31 | Seat Post 17.96mm * | LRM412100-13 |
31 | Seat Post 19.45mm ** | LRM412100-FN |
32 | Seat Post Pin | S31152 |
33 | 12ah Battery (need 2) | LRM402109 |
33 | 12ah Battery Case | LRM412108 |
33 | 12ah Case & Batteries | LRM412120 |
33 | Battery (order 2) | LRM412123 |
33 | 21ah Battery Case | LRM412121 |
33 | 21ah Case & Batteries | LRM412122 |
34 | Battery Case Handle | LRM412108-01 |
35 | 20 Amp Circuit Breaker | LRM302107 |
35 | Substitute | LRM302207 |
37 | Front Frame | LRM412133 |
38 | Anti-tip Wheel | LRM302114 |
39 | Rear Shroud | LRM412119 |
40 | Rear Wheel - Black | LRM412113-02 |
41 | Battery Case Clamp | AZ3022 |
42 | Motor, Brake & Gear Box | LRM412106 |
42 | Gearbox Only | LRM412106-01 |
42 | Motor | LRM302106-02 |
42 | Electro Magnetic Brake | LRM412106-03 |
43 | Rear Frame | LRM412124 |
44 | Controller Gen 1 | LRM412105 |
44 | Controller Generation 2 | LRM412105-02 |
45 | Charger | LRM302111 |
46 | Frame Latch | LRM412133-01 |
47 | Wire Harness (no headlight) | LRM412101-02 |
47 | Wire Harness (headlight) | LRM414109 |
48 | Front Wheel Bearing | STDS4Y4708 |
49 | Battery Contact Plate | LRM412118-10 |
50 | Tiller Lock | LRM412131-03 |
51 | Lower Folding Hinge | LRB402345 |
52 | Seat Post Screw | LRM412100-14 |
53 | Contact Black Set | LRM412101-12 |
54 | Horn Generation | LRM402200-21 |
