Cobalt X23 Replacement Parts
Vendor: Drive Medical
Type: Power Wheelchairs Replacement Parts
Cobalt X23 Replacement Parts
Cobalt X23 Replacement Parts
Cobalt X23 Replacement Parts
Cobalt X23 Replacement Parts
Cobalt X23 Replacement Parts
Cobalt X23 Replacement Parts
Cobalt X23 Replacement Parts
Cobalt X23 Replacement Parts

FSA & HSA Eligible
  • Free Shipping
  • Product Specialist
  • Lifetime Phone Support
  • Financing Options

Need Help?

Talk to one of our Experts!

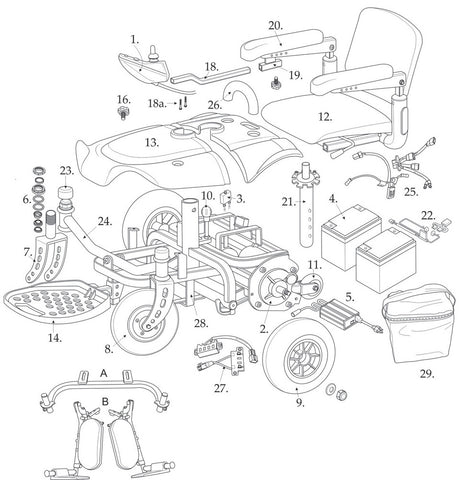

Parts For Cobalt X23

cobalt-parts

Please refer to parts diagram in order to select the correct replacement part for your Cobalt X23. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335

1 Joystick Overlay DC GLA81043
2 Gear Box Assm.- Left LDR420002-05
2 Gear Box Assm.- Right LDR420002-06
3 20 Amp Circuit Breaker LRM302107
4 Battery (order 2) LRM412123
5 Charger LRM302111
6 Fork Stem Bearings LDR410006-01
7 Caster Fork Assm. LDR420006
8 Front Caster Grey LDR420007
8 Front Caster Black LDR420007-02
9 Rear Wheel- Grey LDR420008
9 Rear Wheel- Black LDR420008-02
10 Frame Lock Bolt Assm. LDR420010
11 Anti-Tip Wheel LRC402410
12 Seat Assm. LDR420011-01
13 Shroud — Front Shroud Blue LDR420012-01B
13 Front Shroud Red LDR420012-01R
13 Rear Shroud Blue LDR420012-02B
13 Rear Shroud Red LDR420012-02R
14 Footrest Assm. LDR410016
18 Joystick Arm LDM400001-04
18a Joystick Screws LDM400001-01
19 Joystick Bracket LDM400001-05
20 Arm Assm.- Left LDR420016L
20 Arm Assm.- Right LDR420016R
21 Seat Post 17.96mm * LRM412100-13
22 Battery Cable LDR420000-01
23 Dust Cap LDM400013-02
24 Front Articulating Bar LDR420000-26
25 Wiring Harness LDR420000-12
26 Handle LDR420000-19
27 Contact Block Set LDR420001
28 Front Frame LDR420002
29 Battery Bag LDR420003-01
Shroud Knob LDR410115-03 (1L Serial #)
