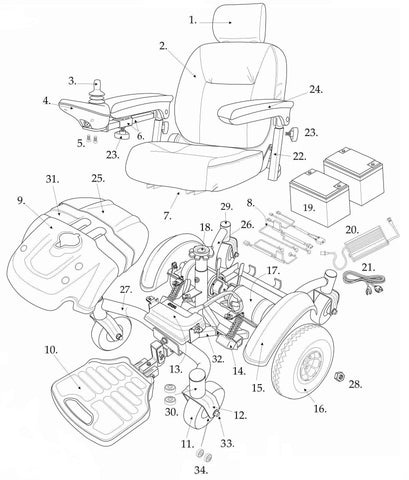

1

Head Rest 18"

ECI6015

1

Head Rest 20"

ECI6015-20

2

Seat 18"

ECI6005

2

Seat 20"

ECI6004

3

Joystick Tip

CP6200T

4

Joystick

S350169701

5

Joystick Screws

SI69001

6

Joystick Arm

GTI6045

7

Seat Plate

ECI6007

8

Wire Harness

SF9038GT

9

Shroud

ECI6011

10

Footplate

SF9035

11

Front & Rear Caster

ECI6040

12

Fork

ECI6020

13

Controller For Yellow Plug REV2 **

S350169738

14

Suspension

ECI6025

15

Fender Shroud-Burgundy Right

ECI6010BUR

15

Fender Shroud-Burgundy Left

ECI6010BUL

15

Fender Shroud-Blue Right

ECI6010BR

15

Fender Shroud-Blue Left

ECI6010BL

16

Drive Wheel

SF9060

17

Motor

ECI6018R

17

Motor

ECI6018L

18

Seat Post

GTI6006

19

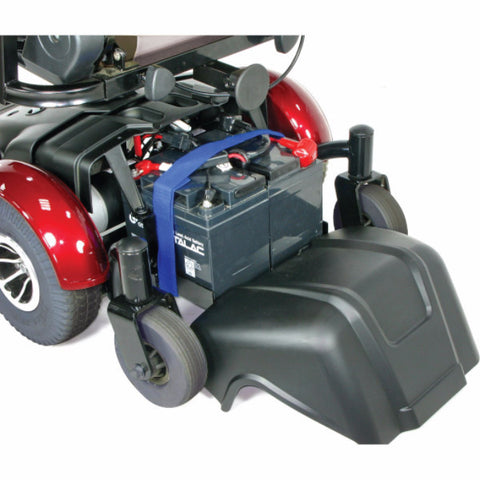

Batteries (ea. 2 needed)

LRA402208

24

Arm Pad

SF9007GT

25

Battery Cover

ECI6012

26

Rear Frame

ECI6043

27

Fork Pivot Frame

ECI6030

28

Drive Axle Nut

ECI6018

29

Fork Stem Cap

GTI6044

30

Rear wheel bearing

STDS2A5303

31

Center Shroud

ECI6013

32

Front Frame

ECI6042

33

Caster Axle

ECI6039

34

Caster Bearings

ECI6041
